FIG. 080Tipping trailers
- Payload (technical)
- ~8 100 kg
- Payload (registered)
- ~8 100 kg
- Volume w/o / w/ extensions
- 5 m³ (10 m³)
- Load area
- 10 m²
Payload (technical) · ~15 500 kg (16 500 kg with K80 hitch)Payload (registered) · ~12 040 kg

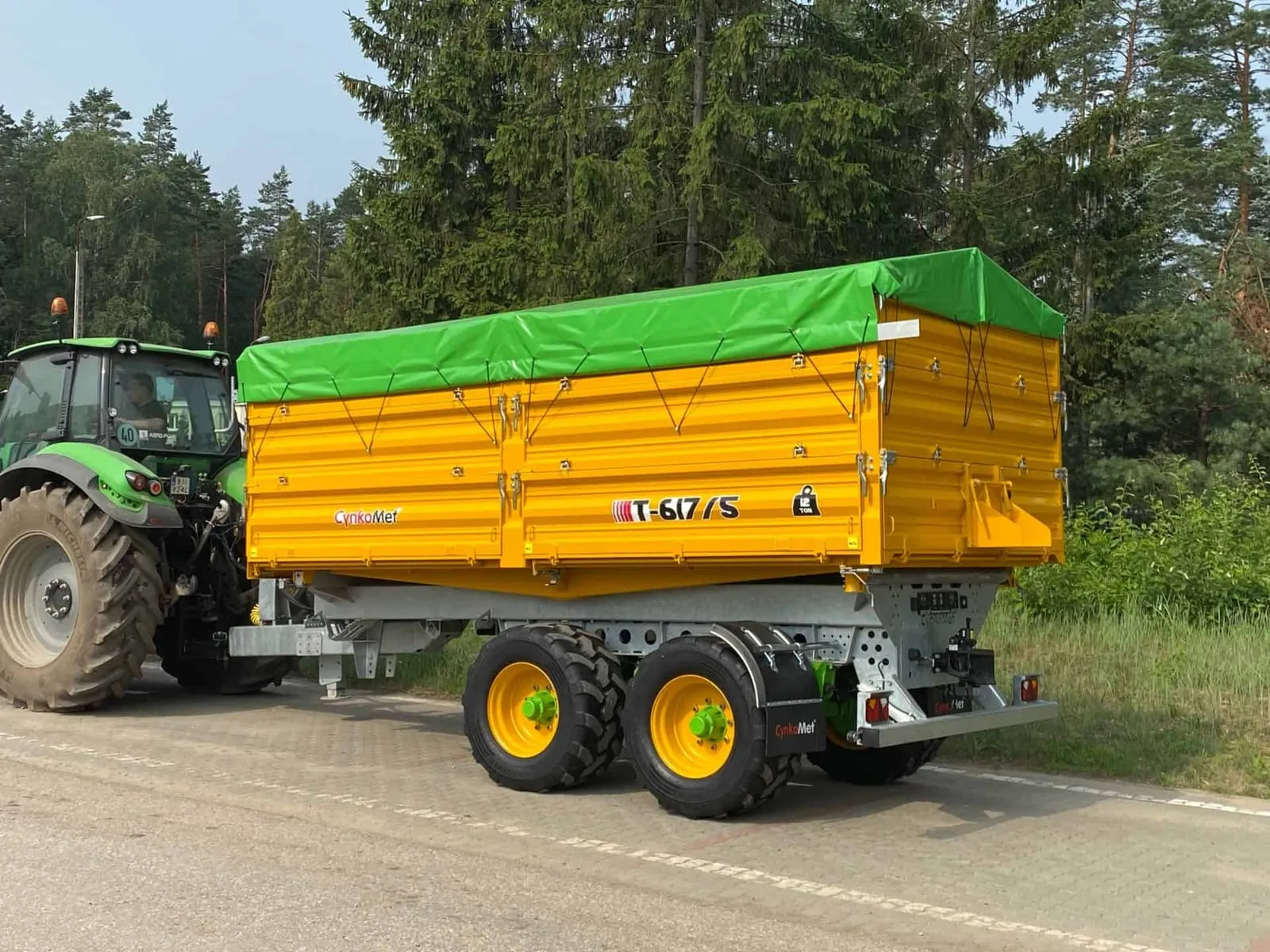

T-617/5 12T EU
- Payload (technical)
- 15 500 kg (16500 kg with K80 hitch)
- Payload (registered)
- 12 040 kg
- Volume w/o / w/ extensions
- 10 m³ (20 m³)
- Load area
- 12.5 m²
§ 01 / Description
Tandem three-way tipping trailer with split 800 + 800 mm side walls, pallet-width body, 12 040 kg permitted payload and 10 m³ (20 m³ with extension walls) capacity. Hot-dip galvanised frame and body for long service life. EU type-approved for use on public roads.
§ 01.1 / Features and equipment
- Wall height 800 mm with thickness 2 mm, hot-galvanized – split side walls
- Wall extensions, height 800 mm with thickness 2 mm, hot-galvanized – split side wall extensions
- Central bolt-locking of walls (bottom sideboards)
- Exterior ladder and steps inside cargo box – hot-galvanized – with anti-skid steps facilitating access to cargo box
- Maintenance support of cargo box, hot-galvanized
- Hot-galvanized drawbar with exchangeable eye, rubber shock absorbers, homologated
- Bolted hitch tension member dia. 50
- Hot-galvanized frame of cargo box
- Main stringers (with variable cross-section) of cargo box frame made of bent high-strength sheets 6mm thick. Profile cross-section at highest point 110×300 mm
- Galvanized cargo box floor welded out of two sheets with a thickness of 5 mm, bolted and riveted
- Hot-dip galvanized bottom frame (protection of the structure on the exterior and interior of profiles), stringers of the frame made of 250x150x8 closed sections
- Parking handbrake with crank
- Grain chute, hot-galvanized, with blockade in the rear wall
- Hydraulic drawbar support with built-in hydraulic lock

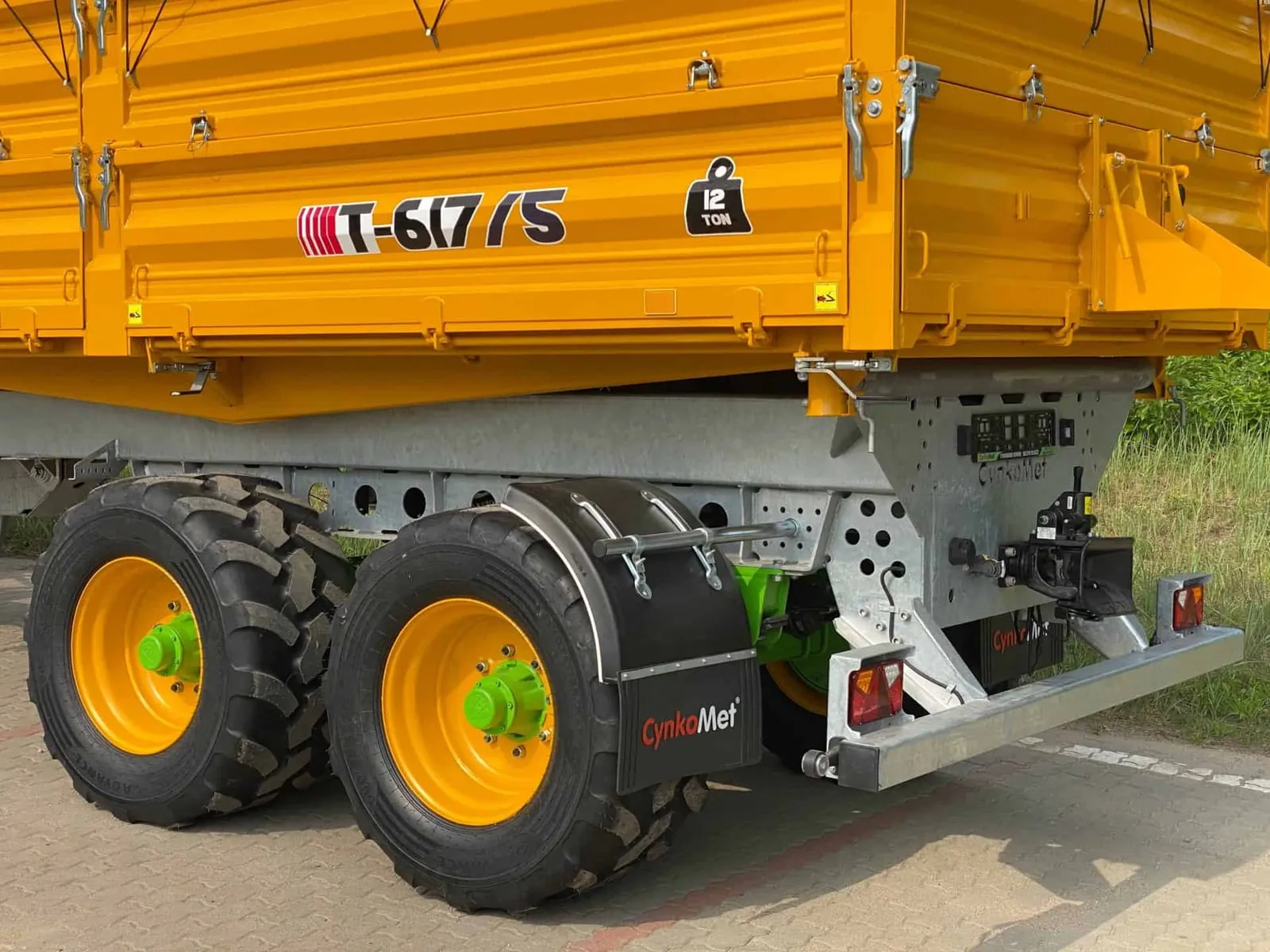

- Homologated, hot-galvanized bumper
- Side wall links
- Pallet width
- Tipping installation protected against excessive box inclination by cut-off valve
- Lighting installation connector cable with 7PIN 12V plug
- 12V lighting, homologated, rear bulb lamps, LED perimeter lighting
- Hydraulic installations made of galvanized steel tubes and flexible hoses
- Hydraulic connectors to tractor, type ISO 7241-1 DN 12.5
- Homologated, double-circuit, pneumatic brake system with automatic braking force adjustment, with output for second trailer.
- Rear hydraulic, electrical and brake output to the second trailer

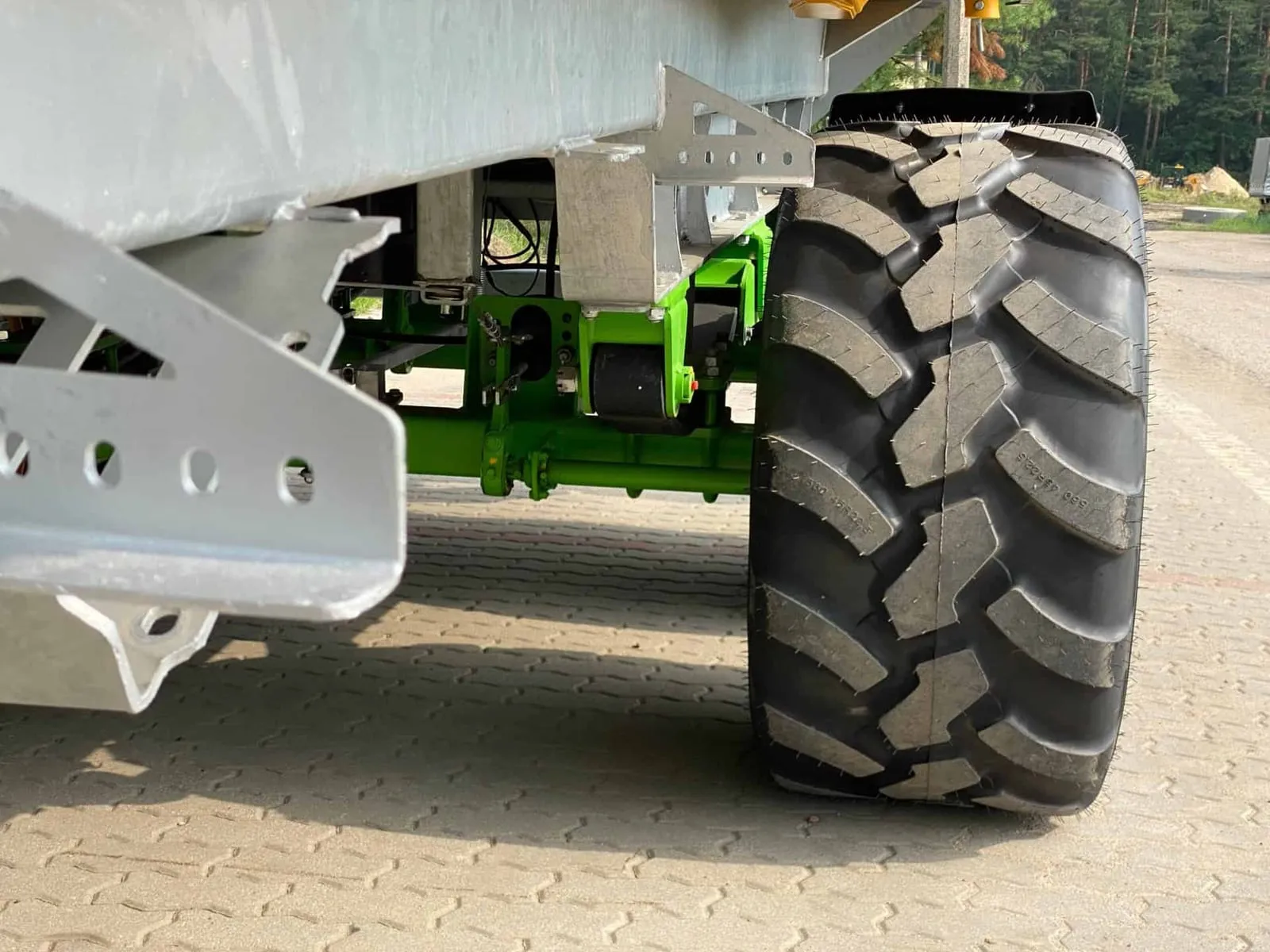

- New 385/65 R22.5 wheels
- Axles from renowned ADR company, full beam with 100 mm square cross-section, 406 x 120 brake
- Parabolic leaf spring suspension
- Two wheel chocks placed in galvanized pockets
- Telescopic actuator with articulated suspensions, five-level with 1980 mm pitch. Nominal force at fifth level with diameter 140 mm, at nominal pressure 20 MPa = 307.9kN (31.4T)
- Wheel fenders
§ 02 / Specifications
| 01Body type | dropside, pallet width |
|---|---|
| 02Payload (technical) | ~15 500 kg (16 500 kg with K80 hitch) |
| 03Payload (registered) | ~12 040 kg |
| 04Min. tractor power | 73.5 kW / 100 HP |
| 05Volume w/o / w/ extensions | 10 m³ (20 m³) |
| 06Design speed | 40 km/h |
| 07EU type / variant / version | T-4 620 61 |
| 08Own weight | ~5 500 kg (with standard extensions) |
| 09GVW (Polish regulations) | 17 540 kg |
| 10GVW (EU 2015/208, axles only) | 14 540 kg |
| 11Max. axle load | 1. 7 270 kg 2. 7 270 kg |
| 12Max. drawbar load | 3 000 kg (4 000 kg with K80 hitch) |
| 13Length | 7 230 mm |
| 14Width | 2 550 mm |
| 15Height w/o extensions | ~2 365 mm |
| 16Height with extensions | ~3 165 mm |
| 17Wheelbase | 1 320 mm |
| 18Wheel track | 1 900 mm |
| 19Tipping system | three-way |
| 20Tipping angle (rear/side) | 45 / 50 |
| 21Box inner length | 5 140 mm |
| 22Box inner width (front/rear) | 2 430 mm |
| 23Side wall height | 1 600 mm (800+800) |
| 24Floor / wall sheet thickness | 5 / 2 mm |
| 25Load area | 12.5 m² |
| 26Platform height | ~1 565 mm |
| 27Axles | 2 (tandem) |
| 28Suspension | parabolic leaf springs |
| 29Tyres | 385/65 R22.5 |
Specifications may vary with configuration. Ask our sales team for the exact specification.
