CynkometTipping trailersEU homologated

T-149/1 EU

Payload (technical): 14 000 kg
Payload (registered): 12 840 kg
Volume w/o / w/ extensions: 10 m³ (20 m³)
Load area: 12.5 m²

Request a price Call +371 29 168 950 Brochure (PDF)

§ 01 / Description

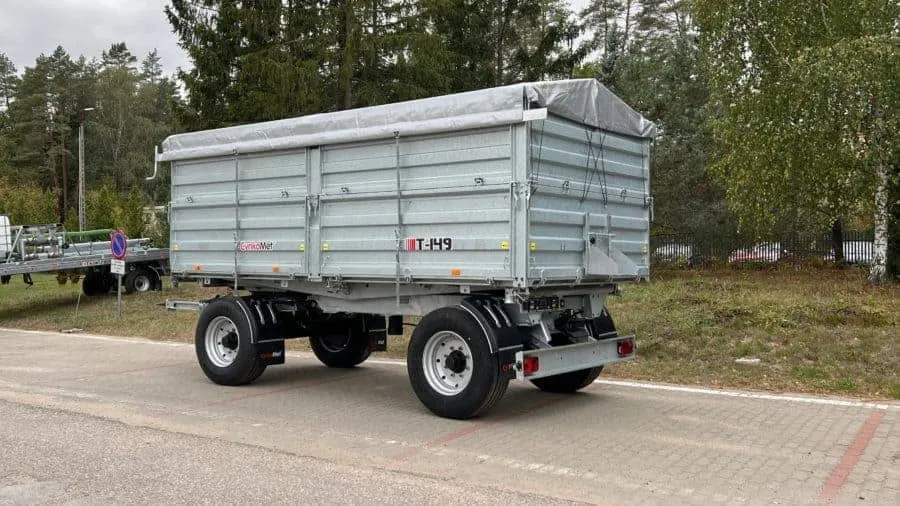

Two-axle three-way tipping trailer with a turntable drawbar, payload 14 000 kg and load volume 10 m³ (20 m³ with extension walls), pallet-width box. Hot-dip galvanised frame and body for long service life. EU type-approved for use on public roads.

§ 01.1 / Features and equipment

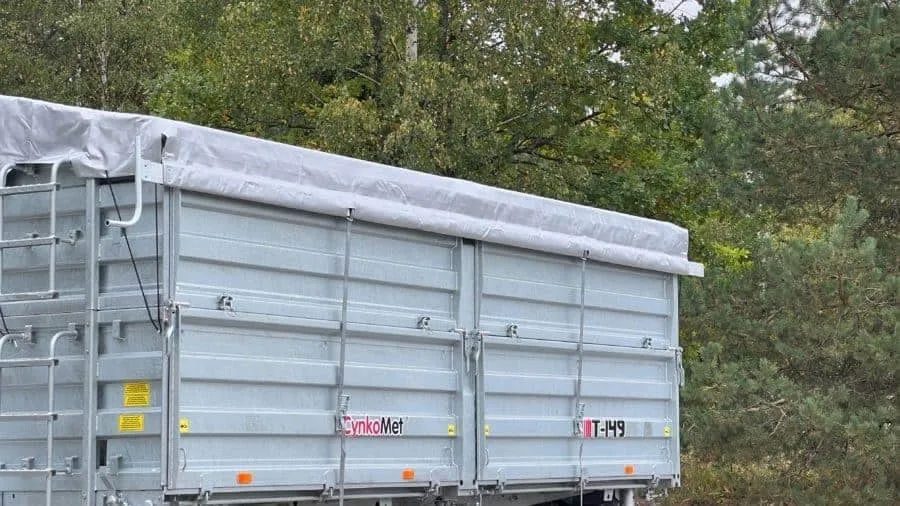

Wall height 800 mm, 2 mm thick, hot-dip galvanised – split side walls
Extensions 800 mm high, 2 mm thick, hot-dip galvanised – split side extensions
Central wall locking (lower dropsides)

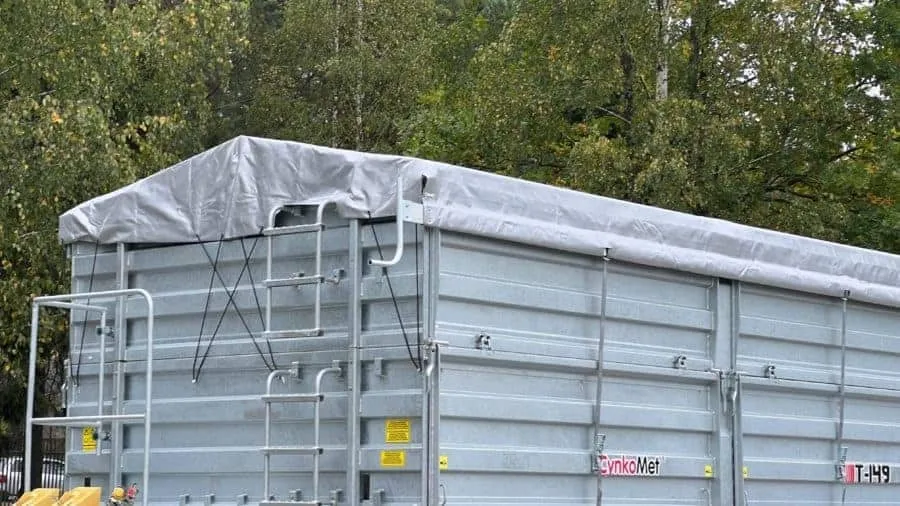

External ladder and internal steps in the cargo box, hot-dip galvanised, with anti-slip treads for easier access
Hot-dip galvanised cargo box service support
Y-type drawbar with replaceable end piece, homologated in accordance with UN ECE Regulation 55 and 167/2013*2015/208 ND
Bolted hitch eye, Ø40
Cargo box frame hot-dip galvanised
Main longitudinal members (variable cross-section) of the cargo box frame made of bent 6 mm high-strength steel sheets. Profile cross-section at its highest point 110x300 mm
Galvanised cargo box floor welded from two 5 mm sheets, bolted and riveted
Lower frame hot-dip galvanised (profiles protected inside and outside), frame longitudinal members made of 250x150x8 and 150x150x8 closed profiles
Manual parking brake with crank
Hot-dip galvanised grain discharge slide with lock in the rear wall
2 adjustable drawbar support springs
Homologated hot-dip galvanised bumper
Dropside tie cables
Pallet width
Tipping system protected by a shut-off valve against excessive box tilt
Lighting connection cable with 7-pin 12V plug
Full LED lighting
Hydraulic tipping system made of electro-galvanised steel pipes and flexible hoses
Hydraulic connection to the tractor, ISO 7241-1 DN 12.5
Homologated two-line pneumatic brake system with automatic brake force regulation and output for a second trailer
Rear hydraulic, electrical and brake outputs for a second trailer
New 385/65 R22.5 wheels
Axles from the renowned ADR company, solid 90 mm square beam, 406×120 brakes
Parabolic leaf spring suspension
Two wheel chocks stored in galvanised holders
Five-stage telescopic cylinder with articulated mount, 1980 mm stroke. Nominal force at the fifth stage (Ø140 mm) at 20 MPa = 307.9 kN (31.4 t)
Wheel mudguards

§ 02 / Specifications

Specifications — Cynkomet T-149/1 EU
01Body type	dropside, pallet width
02Payload (technical)	14 000 kg
03Payload (registered)	~12 840 kg
04Min. tractor power	73.5 kW / 100 HP
05Volume w/o / w/ extensions	10 m³ (20 m³)
06Design speed	40 km/h
07EU type / variant / version	T-1 B21 71
08GVW (Polish regulations)	18 000 kg
09Max. axle load	1. 9 000 kg 2. 9 000 kg
10Length	7 350 mm
11Width	2 550 mm
12Height w/o extensions	~2 175 mm
13Height with extensions	~2 975 mm
14Wheelbase	3 460 mm
15Wheel track	1 900 mm
16Tipping system	three-way
17Tipping angle (rear/side)	45 / 50°
18Box inner length	5 140 mm
19Box inner width (front/rear)	2 430 mm
20Side wall height	1 600 mm (800+800)
21Floor / wall sheet thickness	5 / 2 mm
22Load area	12.5 m²
23Platform height	~1 375 mm
24Axles	2
25Suspension	parabolic leaf springs
26Tyres	385/65-22.5
27Drawbar hitch height (min.)	480 mm
28Drawbar hitch height (max.)	1 190 mm
