Payload (technical) · ~6 000 kgPayload (registered) · ~5 780 kg
N-221/3-3 CS-Line EU
- Payload (technical)
- 6 000 kg
- Payload (registered)
- 5 780 kg
- Volume (heaped)
- 7.2 m³
- Spreading width
- 6 -8 m
§ 01 / Description

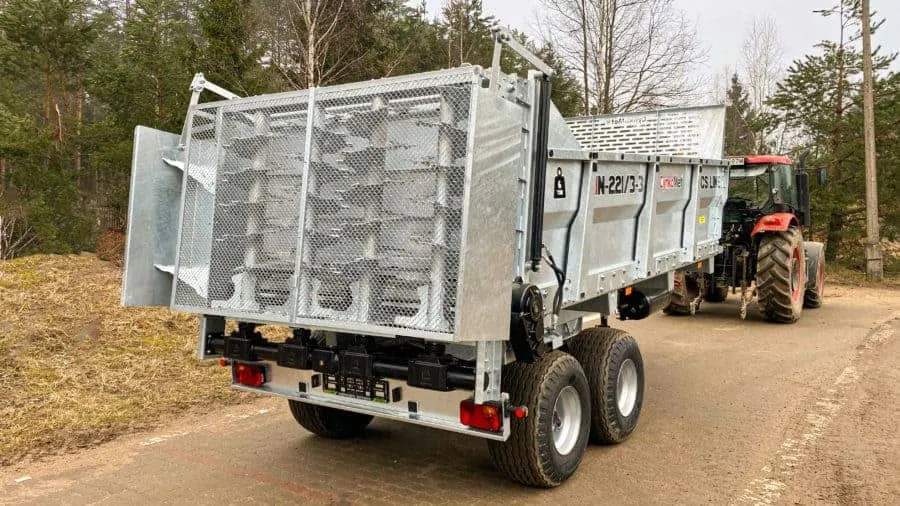

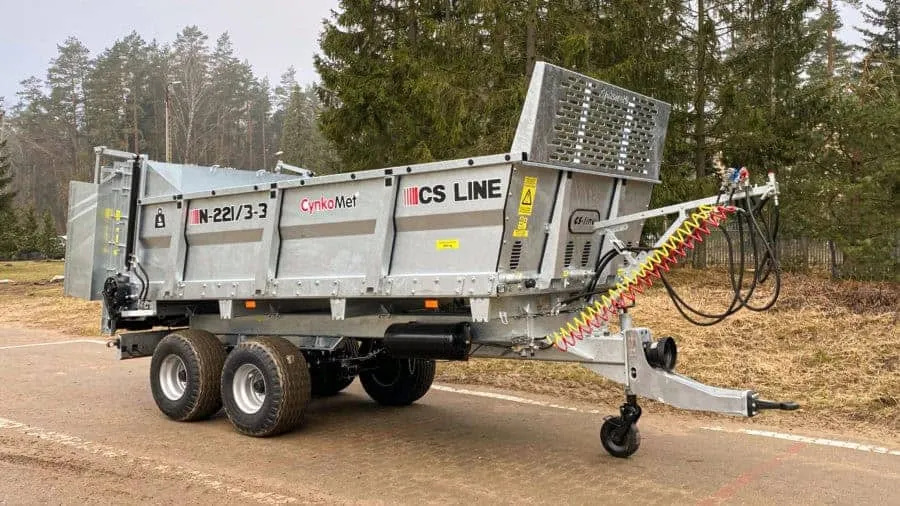

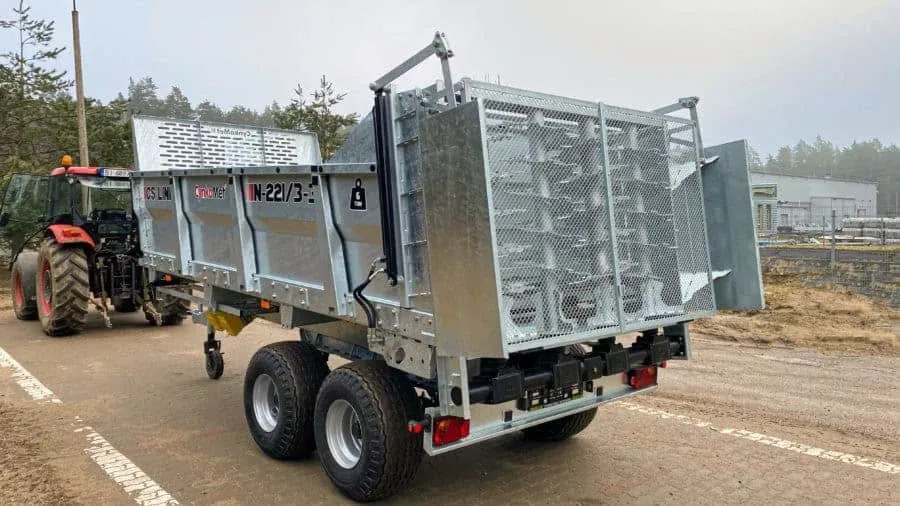

Tandem manure spreader with 6 000 kg payload and 7.2 m³ capacity, equipped with an A4VS adapter with 4 vertical beaters and spreading discs (spreading width ~6-8 m). CS-Line body with side walls bent from a single sheet of S355 steel. EU type-approved for use on public roads.
§ 01.1 / Features and equipment
- Side walls bent from a single 3mm S355 steel sheet, 800mm high, with wall stiffening profiles hot-dip galvanised
- A4VS adapter with 4 inclined vertical worm drums equipped with bolted knives, plates, and a lime table, hot-dip galvanised
- Exchangeable floor made of hot-dip galvanised flat sheet
- Hot-dip galvanised two-position drawbar for connecting to the tractor’s lower or upper hitch with a replaceable 50mm eye homologated in accordance with Regulation 55UN ECE
- Hydraulic drive of the floor conveyor with stepless adjustment and overload valve
- Hot-dip galvanised hydraulic rear wall
- Hot-dip galvanised adapter cover
- Hot-dip galvanised front guard meeting safety requirements
- Bolted drawbar diameter 50
- Lower and upper frames hot-dip galvanised (protection inside and outside of profiles)
- Mechanical support with crank
- Hot-dip galvanised conveyor chain link diameter 11mm
- Exchangeable hot-dip galvanised conveyor slats
- Parking handbrake with crank
- Removable external ladder, hot-dip galvanised, with anti-slip steps for easier access to the cargo box
- Socket wheels made of spheroidal graphite iron
- EU homologation
- Lighting installation cable with 7PIN 12V plug
- 12V lighting homologated bulb lighting with LED outline illumination
- Pneumatic two-line brake system with an automatic load sensing brake force regulator (ALB)
- Hydraulic installations made of galvanically zinc-coated steel pipes and flexible hoses
- Hydraulic connection to the tractor ISO 7241-1 DN 12.5
- New wheels 400/60-15.5
- Axles from the renowned ADR company full square beam with 80mm cross-section 300×60 brake
- Two wheel chocks stored in galvanised pockets
- PTO shaft
- Tandem suspension on parabolic springs
- Adapter drive secured with an automatic clutch
- Replaceable adapter knives
- Replaceable galvanised skids for floor conveyor slats
- Chain spacing to prevent chain divergence during operation
- Wooden chain sliders under the upper frame
- Hot-dip galvanised adjustable support for connecting cables
- Wall supports equipped with reinforced edge seals to prevent damage to the zinc coating of walls
- Rear wall height opening indicator
§ 02 / Specifications
| 01Payload (technical) | ~6 000 kg |
|---|---|
| 02Payload (registered) | ~5 780 kg |
| 03Min. tractor power | 59 kW / 80 HP |
| 04Volume (heaped) | 7.2 m³ |
| 05Spreading width | ~6-8 m |
| 06Design speed | 40 km/h |
| 07Own weight | ~4 020 kg |
| 08Max. axle load | 1. – 3 650 kg, 2 – 3 650 kg |
| 09Max. drawbar load | 2 500 kg |
| 10Length | 6 525 mm |
| 11Width | 2 430 mm |
| 12Height | 2 775 mm |
| 13Wheel track | 1 700 mm |
| 14Box inner length | 4 300 mm |
| 15Box inner width | 2 070 / 2 150 mm |
| 16Side wall height | 800 mm |
| 17Opening side walls | no |
| 18Floor / wall sheet thickness | 3/3 mm |
| 19Platform height | 1 330 mm |
| 20Loading height | 2 130 mm |
| 21Axles | 2 – tandem |
| 22Suspension | tandem, parabolic leaf springs |
| 23Tyres | 400/60 15.5 |
| 24Drawbar hitch height (min.) | 390 mm |
| 25Drawbar hitch height (max.) | 1 030 mm |
| 26Spreading adapter | A4VS – 4 vertical beaters |
| 27Adapter drive | mechanical, from PTO |
| 28Conveyor drive | hydraulic |
Specifications may vary with configuration. Ask our sales team for the exact specification.
